Features
After dew-drop coating on fabric, you need to separate the colors on the dew-drop part of fabric with using foil film.
Standard specification

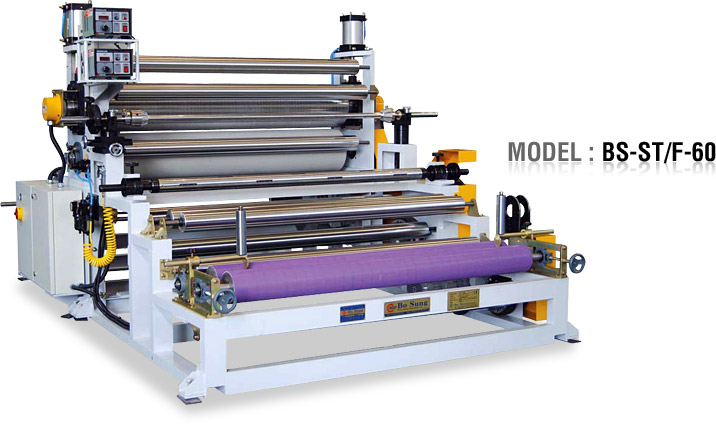

| Model No. | BS-ST/F-60 | |
|---|---|---|
| Working width | 1550mm (60inch) | |
| Machine roll width | 1700mm | |
| Production speed | 30-60 m/min | |
| Consisting of.. | Unwinder | Max. winding diameter Ø600mm |
| Rewindert | Max. winding diameter Ø600mm | |
| Powder brake | 5kg | |
| Powder clutch | 20kg | |
| Main drive motor | 3.7kw inverter motor | |
| Pully motor | 2.2kw motor | |
| Stamping part | Heating roll(electric heater 2kw×9) and silicon roll | |
| Machine dimension | 2500mm × 3500mm × 2200mm (high) | |
| Machine weight | 2500kg | |
