Micro slitter & winder

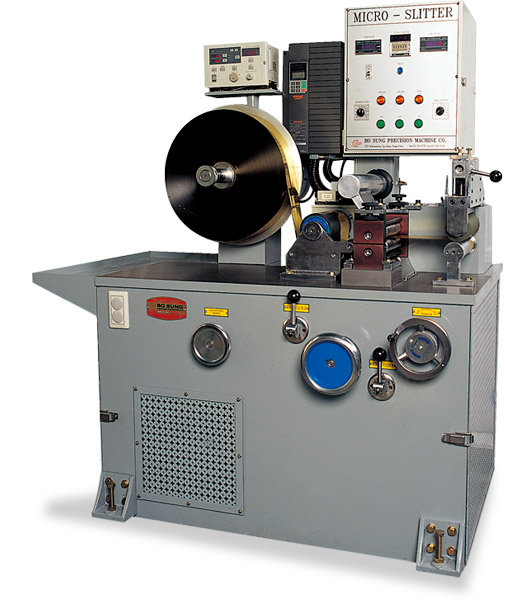

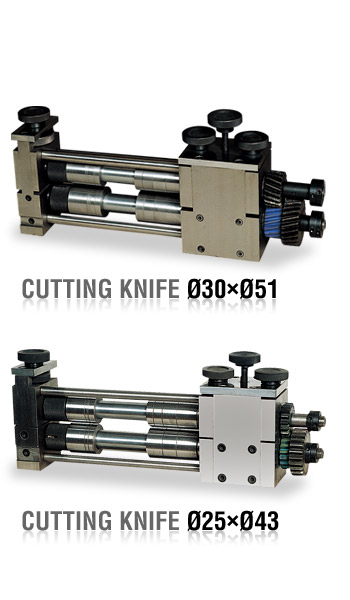

product image: Cutting knifeproduct image: Micro slitter

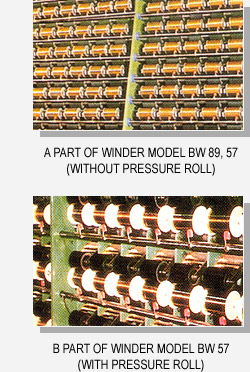

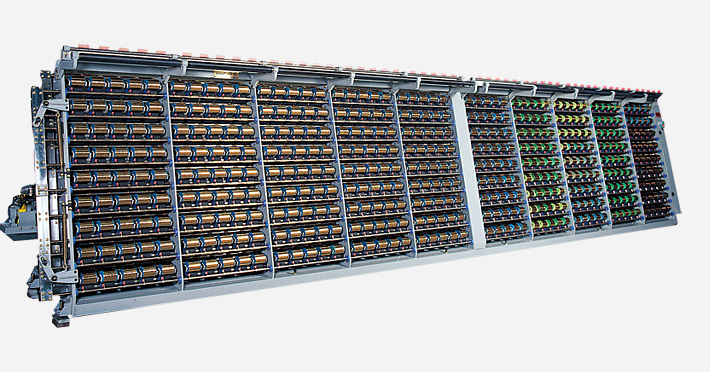

product image: Winderproduct image: Part of winder

Standard specification

Specification of Slitter
Model of Slitter BMS 57-130 BMS 89-130 BMS 57-180 BMS 89-180 BMS 89-260
Applicable materials Metallic film, polyester base film, cellophane film, filmy papers
Pancake size (max.) Out DIA Ø560mm Ø640mm
Width 130mm 180mm 260mm
Machine speed Max. 450m/min (with pressure roll type max. 320m/min)
Film thickness 0.01~0.30mm
Slitting width 0.15~3.00mm
Main motor Fuji inverter motor 7.5kw(10hp)~15kw(20hp) (according to the no. of bobbins)
Cutting knife diameter Ø25mm × Ø43mm of Ø30mm × Ø51mm(option)
Cooling fan 0.49kw×1EA (lower) 0.49kw×2EA (upper/lower)
Operation of powder brake 3kg/m 5kg/m
Adjusting volume & automatic brake controller is option Mitsubish(Japan) 30FTA
Tension device between slitter & winder
  • PIV-3H or
  • Tsubaki(Japan) disco, this is stepless variable speed controller is option
Clutch for slitter counter
  • Manual clutch 2 sets (double clutch system)
  • Auto counter system
  • Mechanical type is option
Oil roller box Option Attached
Machine size & weight W×L×H(mm) 850 × 1150 × 1650 900 × 1200 × 1650 950 × 1250 × 1650
Weight(kg) 1050 1250 1330
Specification of Winder
Model of winder BW 57-4S BW 89-S BW 57-L BW 89-L
Number of bobbins 224, 360 or more (option) 450, 456, 459, 504, 560, 600 or more (option)
Winding speed (max.) 320m/min 400m/min 350m/min 400m/min
Pressure roll Using Not using Not using Not using
Winder cradle Movable (left and right) cradle *Patent item*
Poly belt (made in Japan) (W)75×(T)2.5mm     10~13.5m long (option)
Winding quantity
(base on 12M×1/100˝ gold)		 BW 57 Type : Ø43×Ø22×57=8,000m    Ø70×Ø36×57=24,000m    Ø80×Ø42×57=38,000m
BW 89 Type : Ø82×Ø48×89=32,000m    Ø95×Ø59×89=63,000m    Ø115×Ø59×89=150,000m
Machine size & weight   57-360 Bobbins 89-360 Bobbins 57-456 Bobbins 89-450 Bobbins 89-600 Bobbins
W×L×H(mm) 800 × 5140 × 1640 800 × 6950 × 1640 800 × 6200 × 1600 800 × 8500 × 1800 860 × 9950 × 1940
Weight(kg) 3500 3700 3400 4050 4500
