Polyester Film Coating Machine

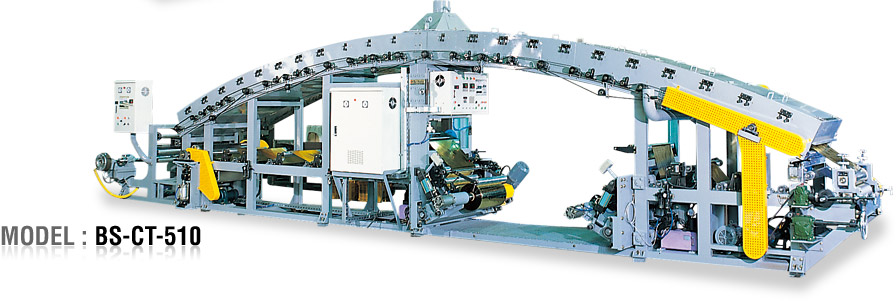

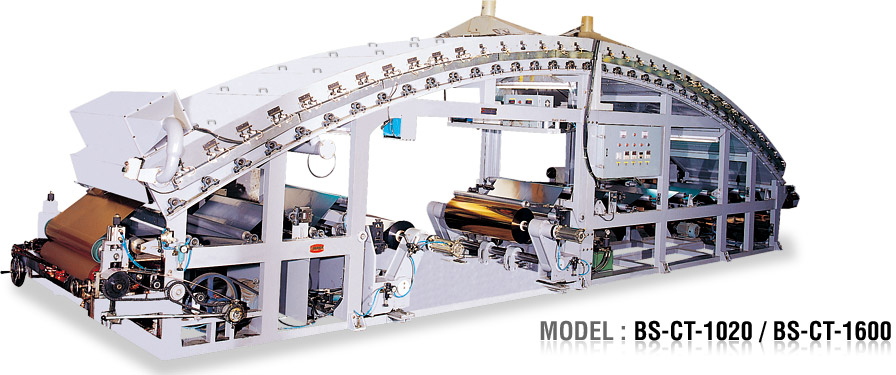

product image: BS-CT-1020 / BS-CT-1600
product image: BS-CT-510

Standard specification

Specification
Model No. BS-CT 510 BS-CT 1020 BS-CT 1600
Applicable film Polyester & metallic film, filmy paper
Coating width (max.) 520mm 1040mm 1600mm
Machine speed (max.) 100m/min
Main motor Inverter motor 5.5kw 7.5kw
Rewinding motor 1.5kw 2.2kw 3.7kw
Power supply 220V or 380V or 440V × 50Hz or 60Hz
Unwinding system Powder brake 10kg/m 20kg/m 40kg/m
Rewinding system Powder clutch 10kg/m 40kg/m 40kg/m
Heating source   by Electric heater (option)
Heater capacity 40kw 86kw 132kw
Rubber roller Ø150mm × 620mm(L) Ø200mm × 1150mm(L) Ø200mm × 1750mm(L)
Mesh roller Ø150mm × 600mm(L) Ø200mm × 1120mm(L) Ø200mm × 1720mm(L)
  • Mesh number #175, #200, #250(option)
  • Ceramic mesh roll is an option
E.P.C System Unwinding and rewinding edge position control by beam sensor and hydraulic system
Auto tension controller
  • Unwinding controlled by powder brake
  • Rewinding controlled by powder clutch
Machine size (L×W×H)(mm) 7800 × 1800 × 2400 10500 × 2500 × 3300 13000 × 2960 × 3500
9600 × 1800 × 2400 13000 × 2500 × 3300 15000 × 2960 × 3500
Machine weight(kg) 3500 or 4300 5800 or 6800 9600
  • Optional Items
    1. ceramic mesh roller
    2. web inspection video monitor system
  • Spare parts
    • rubber roll : Ø150mm×600mm or Ø200mm×1150mm or Ø200mm×1700mm - 1ea
    • electric heater - 5ea
