polyester film coating machine

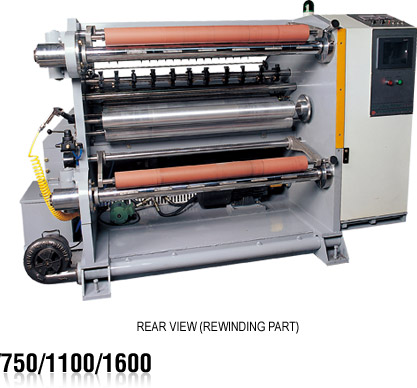

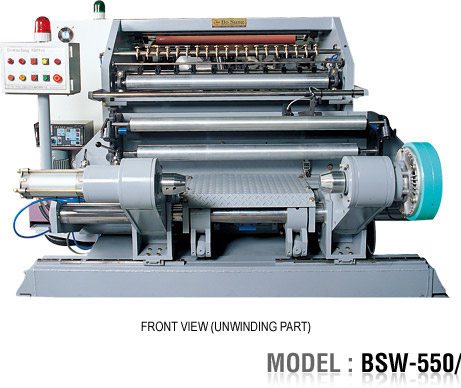

product image: BSW-550/750/1100/1600 front viewproduct image: BSW-550/750/1100/1600 rear view

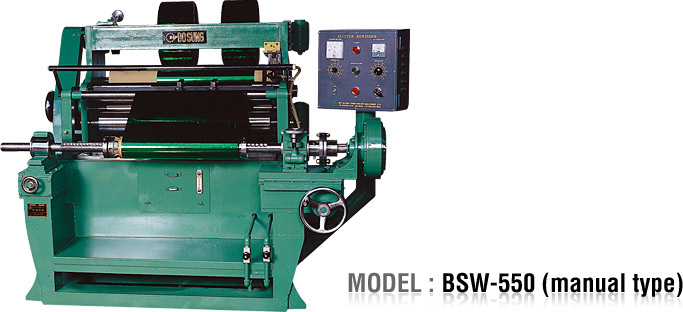

product image: BSW-550 (manual type)

Standard specification

Specification
Model No. BSW-550 BSW-750 BSW-1100 BSW-1600
Rewinding DIA. (max.) Ø550mm Ø640mm
Slitting width (max.) 550mm 750mm 1100mm 1600mm
Main motor (inverter) 5HP (3.7kw) 7.5HP (5.5kw) 10HP (7.5kw) 15HP (11kw)
Knife bracket 7EA 10EA 13EA 21EA
Machine speed 0-250m/min
Oil supply Automatic
E.P.C Edge position controller by beam sensor & hydraulic system
Auto tension & auto speed control
  • Full automatic touch screen type electronic control system
  • For accurate speed control, vector drive motor system is applied. (made in france)
*Ring knife system *Optional item
Machine size
Machine size (mm)
Width 1800 2050 2400 3100
Length 1850 2100 2100 2400
Height 1400 1500 1500 1730
Weight (kg) 2700 3600 4200 5500
