Features
You can do normal foil printing & smoke foil printing on the fabric with this machine.
Standard specification

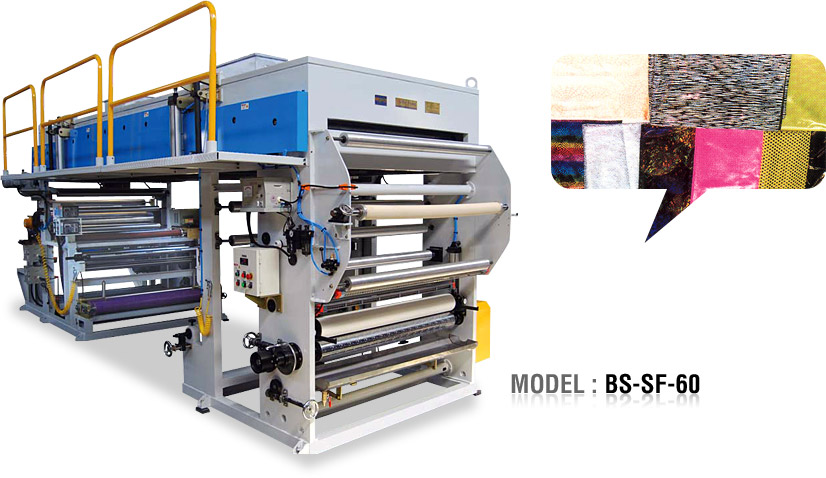

| Model No. | BS-SF-60 | |
|---|---|---|
| Working width | 1550mm (60inch) | |
| Machine roll width | 1700mm | |
| Production speed | 30-40 m/min | |
| Consisting of.. | Unwinder | Max. winding diameter Ø600mm |
| Foil printing part | Design roll size of Ø165mm diameter × 1650mm long | |
| Laminating part | Heating roll(electric heater 1.5kw×9pieces) and silicon roll * thermal oil inside of heating roll |
|
| Drying chamber | 6m long, electric heater 24kw×2pieces | |
| Rewinder | Max. winding diameter 600mm | |
| Main driving motor | 3.7kw inverter motor | |
| Conveyor motor | 1.5kw inverter motor | |
| Machine dimension | 3350mm × 7800mm × 3300mm (high) | |
| Machine weight | 8000kg | |
